Handheld Alignment Fixture

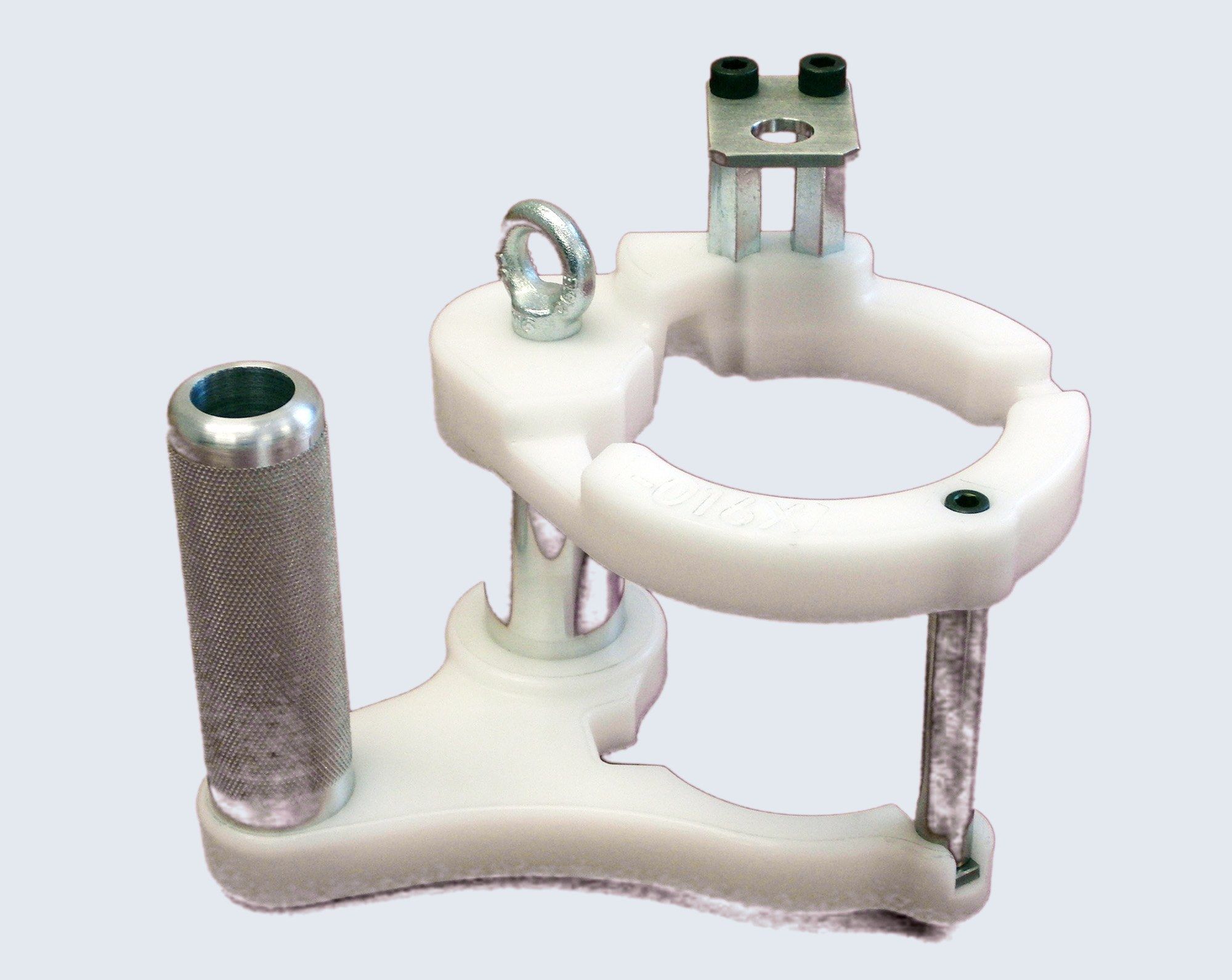

An ergonomic handheld alignment fixture for manual assembly, engineered and assembled within two weeks.
- Customer
- Tier-1 automotive manufacturer
- Industry
- Automotive
- Service
- Automation Engineering
- engineered and assembled
- 2 weeks
The challenge
- A handheld alignment fixture for a manual assembly process, on a quick turn
What APTUS did
- Designed from the customer’s existing 3D CAD data
- Engineered and assembled the fixture
Results
- Ergonomic and easy to use
- Exceeded the production accuracy requirement
- Delivered within 2 weeks
What went into it
- Fixtures & ToolingTools that hold, align, and check parts every time.
- Mechanical DesignThe parts and mechanisms that make it work.
